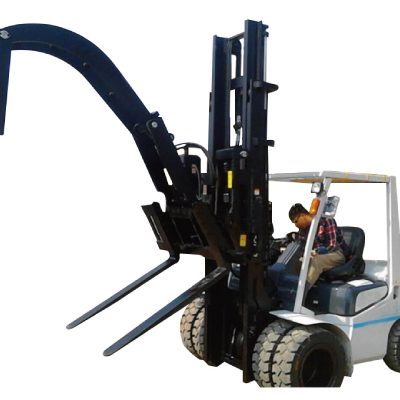

హైడ్రాలిక్ ఫోర్క్లిఫ్ట్ జోడింపులు లాగ్ హోల్డర్

హోమ్ / అన్ని జోడింపులు / హైడ్రాలిక్ ఫోర్క్లిఫ్ట్ జోడింపులు లాగ్ హోల్డర్

హైడ్రాలిక్ ఫోర్క్లిఫ్ట్ జోడింపులు లాగ్ హోల్డర్

ఉత్పత్తి అనువర్తనం మరియు కాన్ఫిగరేషన్ యొక్క ముఖ్యమైన భాగం

1, hydraulic system: imported original fuel tank check valve; seal products are imported, high-pressure hose with cone seal, high-performance imports hose.
2, structural parts: the fork frame using high-performance steel plates welded together.
3, mechanical performance: to achieve 45 ° forward, 19 ° backward, adding in the fuel tank check valve, in order to achieve long packing, ensure that the work or the safety hose burst.
4 Application: suitable for a variety of round timber holding clip, round cloth and other transport / disposal work, reduce the logistics cost, significantly increase the production efficiency.

గమనిక


1, అసలు ట్రక్ / మోసే సామర్థ్యం ఫోర్క్లిఫ్ట్ నుండి పొందిన సమగ్ర కర్మాగారం.
2, this is a required matching increase in group 2 required additional forklifts circuit, both with self-locking cylinder.
3, fork length as a standard fork.

ఫ్లో మీటర్ కోసం ఒత్తిడి


శీఘ్ర వివరాలు


మూలం స్థలం: ఫుజియాన్, చైనా (మెయిన్ ల్యాండ్)
బ్రాండ్ పేరు: హుమాయ్
Model Number: QY25G-B1
Product Name: Log Holder
Type: QY25G-B1
సంస్థాపనా గ్రేడ్: III
Adaptation Forklift: 3-4.5 t
The picking Fork Installation Level: III
Pressure Tooth Width RW: 1000 mm
High-pressure Tooth Node RH: 890 mm
Fork Rack Width A: 1000 mm
Overall height H: 1205 mm
MOQ: 1 SET
